SAW MZ Auto Weld 1250 Amps Description SAW MZ Auto Weld machine is an adopted advanced MOSFET inverter technology, using non-crystal core and power units. Reliable, portable, light, and high efficiency.   Features Multiple Function...

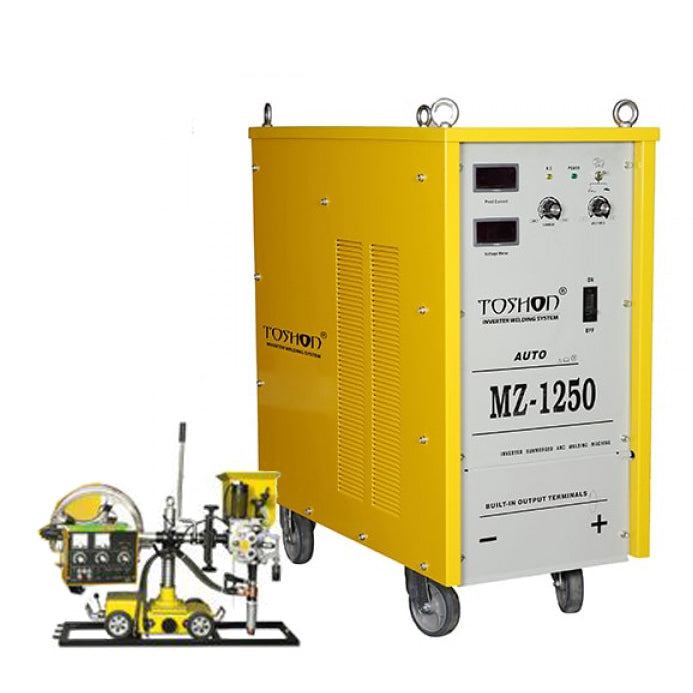

SAW MZ Auto Weld 1250 Amps

Description

SAW MZ Auto Weld machine is an adopted advanced MOSFET inverter technology, using non-crystal core and power units. Reliable, portable, light, and high efficiency.



Features

  • Multiple Function Machines; Capable of well performing the Submerged Arc Welding and Carbon-gauging Functions.
  • Advanced Design with a Built-in Triple Prevention Function; Highly reliable in its performance and capable of well performing in all working environments.
  • Adapted the Most Advanced Control Circuit Design; Its Technology Indices Indicates a First Class Position in the Industry.
  • Excellent Welding Performances; Strong & Durable; Capable of Assuring a Deep Welding Pool and a Good Seam as well.
  • Extensively Applied in the Auto Welding Application on the Large Pressure Containers of Carbon Steels, Alloy Steels, and Stainless Steels, and on the Large Metal Structures.
  • Built-in Over-Heat, Over-Current, Over-Voltage, and Less-Voltage Protection Circuit, Safe Operation Assurance

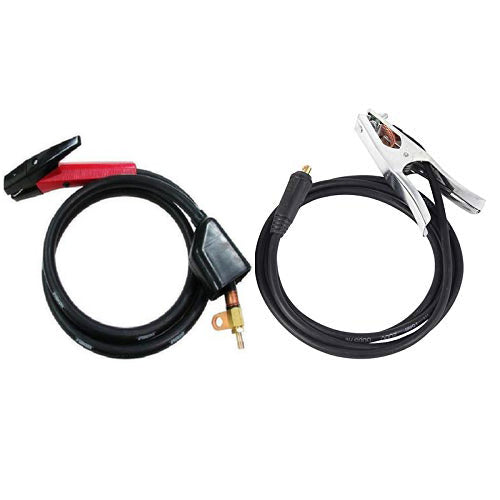

Standard Accessories

  • Gouging Torch
  • Earth Clamp With Cable



Parameter: MZ Auto Weld 1250 AMPS - IGBT
Parameter Model MZ1250 3P
Input Voltage (V) AC415V±15%
Frequency (HZ) 50/60
Rated Input (A) 89
No-load Voltage (V) 76
Output Input Range (A) 112-1250
Rated Output Voltage (V) 44
Arc Force (A) 0-100
Duty Cycle (%) 60
Efficiency (%) 85
Power Factor 0.93
Insulation Grade F
Housing Protection Grade IP21
Net Weight (kg) 85
Dimension (inch) 30*15*30.5
