Rs. 25,960.00 Rs. 33,800.00
TOSHON MAKE THREE PHASE 300 AMPS MOSFET TYPE INVERTER BASED TIG/ARC WELDING MACHINE Features Adopts "Advanced inverter technology" with high working frequency performs dual functions 1) DC MMA Arc welding 2) TIG welding Has "three-ply"board...

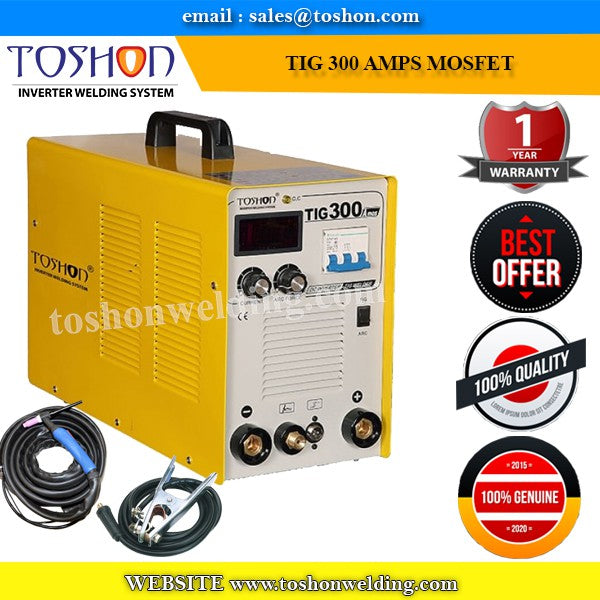

TOSHON MAKE THREE PHASE 300 AMPS MOSFET TYPE INVERTER BASED TIG/ARC WELDING MACHINE

Features

  • Adopts "Advanced inverter technology" with high working frequency
  • performs dual functions 1) DC MMA Arc welding 2) TIG welding
  • Has "three-ply"board structure which is highly durable,reliable and easy for maintenance
  • Provides stable welding current,can do fast TIG welding
  • facilities adjustment of MMA welding thurst
  • Has network voltage compensation.strong ability against network voltage fluctuation,Works normally at + 15% fluctuation
  • Most efficient and "Energy Saving"-40 to 60% over traditional welders
  • Adopts high frequency arc starting,heat arc starting and excellent arc starting
  • Possesses good electric circuit for protection of over voltage,over current and over heat
  • Light and handy

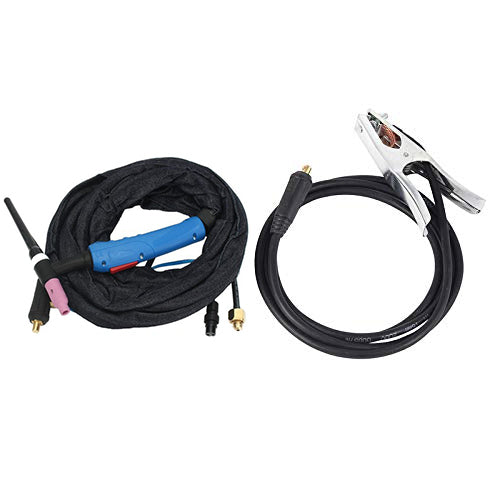

Standard Accessories

  • Gas Cool Tig Torch
  • Earth Clamp With Cable


Parameter: TIG 300 3PH
Input Voltage (V)   AC 415V ±15%
Frequency (HZ)   50/60
Rated Input Current (A) MMA/TIG   18.5/12.6
No-load Voltage (V)   45
Output Current Range (A)   10-200
Input Power Capacity (KVA)    8
Duty Cycle (%)   60
No-Load Loss (W)   40
Arc Ignition   HF
Efficiency (%)   80
Power Factor   0.73
Insulation Grade   F
Housing Protection Grade   IP21
Net Weight (kg)   24
Dimension (mm)   570*370*420
