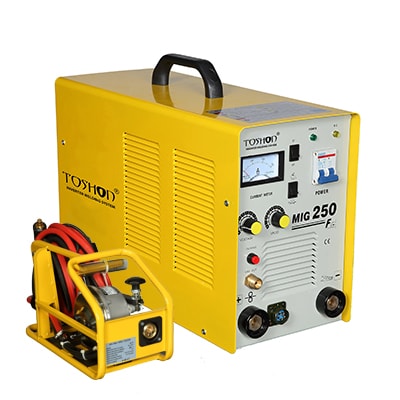

MIG 250 Single Phase Mosfet

Description

Adopting IGBT inverter technology, Easy Arc-Starting; Reliable and stable performance. Closed-circuit feedback, constant output of voltage, suitable for a wide range of voltage (+-15%). Controlled by the electronic reactor, little spark, deep welding pool, nice welding seam. Slow wire feeding during arc starting, remove the ball at the end of the welding wire.



Features

  • High efficiency and energy savings; its power usage efficiency is up to 80 - 85%, its power factor is up to 0.93, and the energy consumption saving is up to 1/3 in total by comparison to the transformer welder.
  • Digital display, current & voltage preset function.
  • Continuous adjustment function of the welding current & voltage with a sufficient wide adjustment range.
  • Capable of forming a good seam shape on the opposite side while making a backing weld.
  • Adapted an instant wire feeding circuit design, much more stable in wire feeding, capable of achieving highly stable wire feeding.

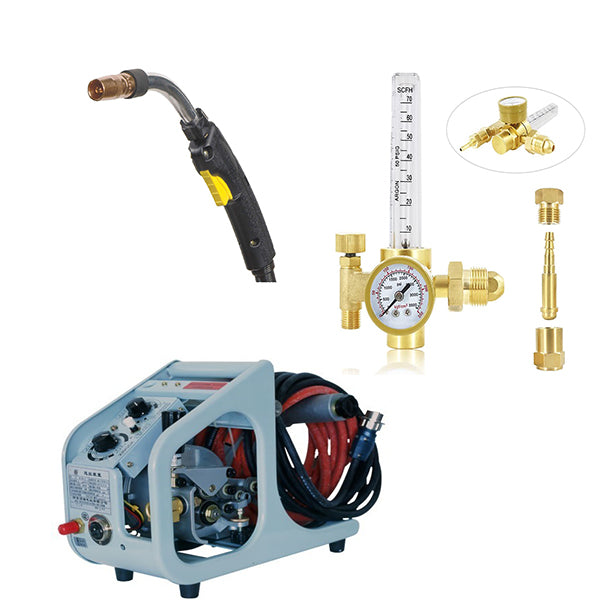

Standard Accessories

  • MIG Gun
  • Regulator With Flow Meter
  • Wire Feeder


Parameter: MIG 250 AMPS 1 PHASE MOSFET
Input Voltage (V) AC415V±15%
Frequency (HZ) 50/60
Rated Input Current (A) MMA/TIG 8.5
Output Input Range (A) 50-250
Output Voltage Adjustment (V) 26.5
Wire-feeding Speed (m/min) 2.5-18
Duty Cycle (%) 60
Type of Wire Feeder Split
Efficiency (%) 85
Power Factor 0.73
Insulation Grade F
Housing Protection Grade IP21
Net Weight (kg) 9
External Dimension (inch) 14.5*6*9
