Rs. 112,100.00 Rs. 116,820.00
MIG-MAG/ARC 630 I Moulder Welding Machine Description Adopting IGBT inverter technology, Easy Arc-Starting; Reliable and stable performance. Closed-circuit feedback, constant output of voltage, suitable for a wide range of voltage (+-15%). Controlled by the electronic...

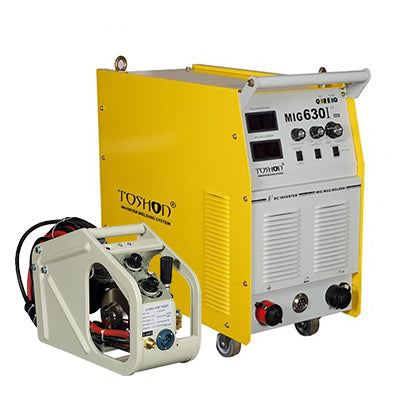

MIG-MAG/ARC 630 I Moulder Welding Machine

Description

Adopting IGBT inverter technology, Easy Arc-Starting; Reliable and stable performance. Closed-circuit feedback, constant output of voltage, suitable for a wide range of voltage (+-15%). Controlled by the electronic reactor, little spark, deep welding pool, nice welding seam. Slow wire feeding during arc starting, remove the ball at the end of the welding wire.



Features

  • High efficiency and energy savings; its power usage efficiency is up to 80 - 85%, its power factor is up to 0.93, and the energy consumption saving is up to 1/3 in total by comparison to the transformer welder
  • Digital display, current & voltage preset function
  • Continuous adjustment function of the welding current & voltage with a sufficient wide adjustment range
  • Capable of forming a good seam shape on the opposite side while making a backing weld
  • Adapted an instant wire feeding circuit design, much more stable in wire feeding, capable of achieving highly stable wire feeding



Standard Accessories

  • MIG Gun
  • ARC Holder With Cable
  • Earth Clamp With Cable
  • Regulator With Flow Meter
  • Wire Feeder



Parameter: MIG - MAG / ARC 630 AMPS I Moulder
Parameter Model MIG-630I 3P
Input Voltage (V) AC415V±15%
Frequency (HZ) 50/60
Rated Input Current (A) MMA/TIG 35
Output Input Range (A) 80-630
Output Voltage Adjustment (V) 44
Wire-feeding Speed (m/min) 3.0-24
Duty Cycle (%) 60
Type of Wire Feeder Split
Efficiency (%) 85
Power Factor 0.93
Insulation Grade F
Housing Protection Grade IP21
Net Weight (kg) 50
External Dimension (inch) 25.5*12*25
