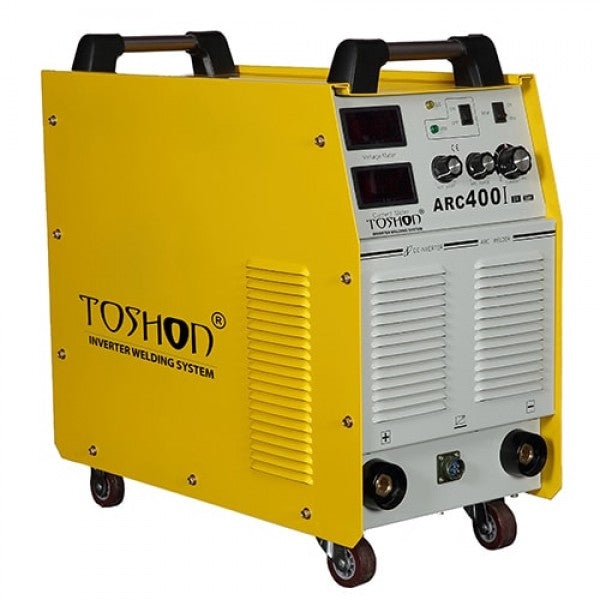

ARC 400 - 3 Phase Moduler IGBT
Description
Made in the advanced inverter technology with the IGBT module with an inverter frequency up to 20KHZ, quick dynamic response in the inside electronic communication, high reliability, and well-functions in welding process; capable of satisfying the tough requirements in the welding for the industrial engineering; highly reliable welding equipment.
Features
Standard Accessories

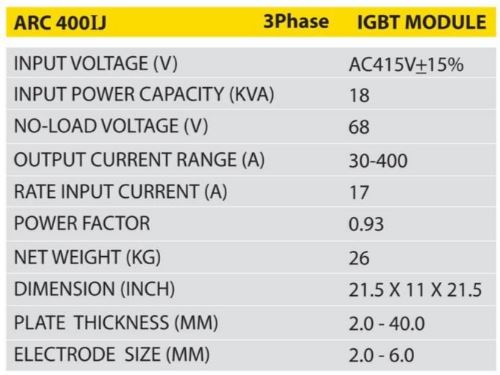

Parameter: | ARC 400 AMPS I - 3 PHASE Moduler IGBT |
Input Voltage (V) | AC415V±15% |
Frequency (HZ) | 50/60 |
Rated Input Current (A) | 27.6 |
No-load Voltage (V) | 68 |
Output Current Range (A) | 40-400 |
Input Power Capacity (KVA) | 18.2 |
Arc Force (A) | 0-135 |
Duty Cycle (%) | 60 |
No-Load Loss (W) | 100 |
Efficiency (%) | 85 |
Power Factor | 0.93 |
Insulation Grade | F |
Housing Protection Grade | IP21 |
Net Weight (kg) | 33 |
Dimension (inch) | 21.5*11*21.5 |
