Rs. 63,720.00 Rs. 82,850.00
ARC 630 3 Phase Moduler IGBT Description Made in the advanced inverter technology with the IGBT module with an inverter frequency up to 20KHZ, quick dynamic response in the inside electronic communication, high reliability, and well-functions...

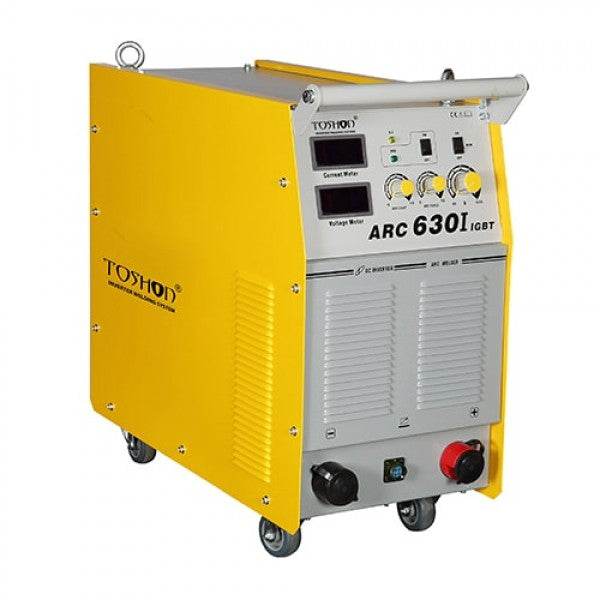

ARC 630 3 Phase Moduler IGBT

Description

Made in the advanced inverter technology with the IGBT module with an inverter frequency up to 20KHZ, quick dynamic response in the inside electronic communication, high reliability, and well-functions in welding process; capable of satisfying the tough requirements in the welding for the industrial engineering; highly reliable welding equipment.



Features

  • High Duty Cycle and Powerful Welding Capacity, even maintain a stable welding status under the supply of 100-meter output cable.
  • Auto-Compensation-Function as to the power supply fluctuation, strong adaptability of anti-power-supply fluctuation and good shape seam; Excellent Anti-Stick Function within the whole current range.
  • Adaptable in the down-orientation welding with the cellulose electrode; adaptable in the welding application indifferent electrodes, especially good for the different low/ medium steels, low alloy steels, and stainless steel in different kinds of basic electrodes.
  • ARC5001 and ARC — 6301 bigger models are able to perform the CARBON_GAUGUNG FUNCTION.



Standard Accessories

  • Earth Clamp With Cable
  • ARC Holder With Cable





Parameter: ARC 630 AMPS I - Moduler IGBT 3 PHASE
Parameter Model   ARC-400I 3P
Input Voltage (V)   AC415V±15%
Frequency (HZ)   50/60
Rated Input Current (A)   53.1
No-load Voltage (V)   85
Output Current Range (A)   50-630
Input Power Capacity (KVA)   36
Arc Force (A)   0-135
Duty Cycle (%)   60
No-Load Loss (W)   200
Efficiency (%)   85
Power Factor   0.93
Insulation Grade   F
Housing Protection Grade   IP21
Net Weight (kg)   54
Dimension (inch)   27*12*26
